Tunnel Excavation & Support

Drill-and-blast and NATM equipment for tunnels and underground works: drilling jumbos, shotcrete sprayers, bolting jumbos, lining gantries, formwork, ventilation and ancillary plant.

Key Specifications

2 - 4

Boom Configurations

41 - 245 mm

Drill-Hole Diameter

17.8 m x 13.4 m

Max Working Section

Up to 150 m

Drilling Depth (MWD rig)

Up to 50 m³/h

Shotcrete Output

Up to 4,500 m

High-Altitude Operation

Up to 168 t

Operating Weight (diaphragm wall)

Featured Models

Tunnel Drilling Jumbo

Two-, three- and four-boom hydraulic rock-drilling jumbos for drill-and-blast tunnelling. Computer-controlled hole positioning, MWD geological logging and 3D profile scanning support precise rounds across the full range of drill-and-blast working sections.

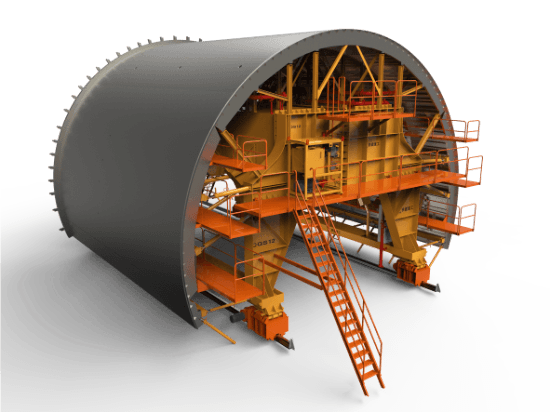

Digital Lining Formwork Gantry

Self-propelled secondary-lining formwork gantry with a dual concrete pouring system, high-frequency wall vibrators and crown-fill monitoring. Cycle automation supports 8 to 10 hour first-and-second lining cycles on metro running tunnels and rail station boxes, the highest-CapEx mechanised line item on a NATM programme.

Continuous Belt Conveyor

Tunnel-long muck haulage belt that follows the TBM forward, with intermediate drive units distributing belt tension over kilometre-class drive lengths. The mechanised muck-out solution for long urban TBM drives and long hydropower headrace tunnels where back-up trains alone cannot keep pace with cutterhead advance.
